Product Description

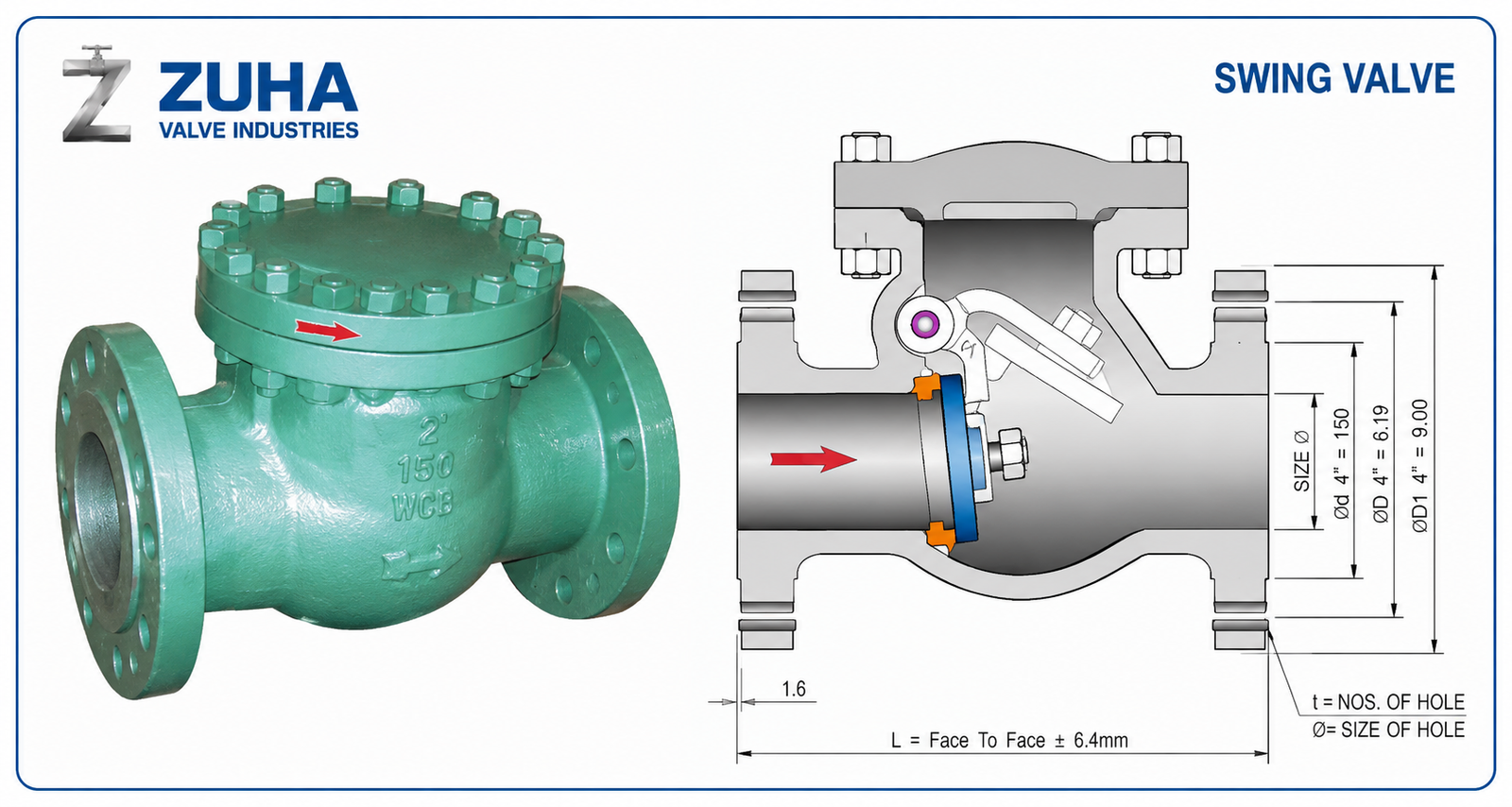

The Swing Type & Lift Type Check Valve is engineered to prevent reverse flow
in high-pressure industrial piping systems while ensuring reliable and maintenance-free operation.
Manufactured with a robust bolted cover and straight body design, these cast steel non-return
valves are available with renewable seats and premium trim materials for extended service life.
Swing Check Valves are suitable for horizontal and vertical upward flow, while Lift Check Valves
are designed for horizontal installations. Optional bypass arrangements and Stellite hard-faced
seating are available for severe service applications.
| Specification | Details |
|---|---|
| Valve Type | Swing Type Check Valve / Lift Type Check Valve (Non-Return Valve) |
| Design | API / British Standard, Straight Body with Bolted Cover |
| Body Material | ASTM A216 Gr. WCB, WC6, WC9, LCB, C12, C5, SS304, SS316 |
| Disc & Seat Material | Carbon Steel, SS304, SS304L, SS316, SS316L |
| Trim Material | F6, SS304, SS304L, SS316, SS316L |
| Pressure Rating | ASME Class 600, 900 & 1500 |
| End Connections | Flanged Ends (ASME B16.5), Butt Weld (ASME B16.25 & B16.11) |
| Flow Direction | Swing Check Valve: Horizontal or Vertical Upward Flow | Lift Check Valve: Horizontal Pipeline Only |
| Seat Design | Renewable Seat with Highly Lapped Disc for Extended Service Life |
| Manufacturing Standards | BS 1868, API 600, ANSI, ASME |
| Testing Standards | API 598, BS 6755 |
| Joint Gasket | CAF, B8, Compressed Asbestos Fiber, SS304 Spiral Wound with CAF |
| Special Features | Optional By-Pass Arrangement Valve, Stellite Hard-Faced Seat for High Pressure & High Temperature Service, PTFE Seated Option for Low Vacuum Applications |
| Applications | Oil & Gas, Water, Air, Chemicals, Pharmaceutical, Petrochemical, Acid Handling, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries |
