Product Description

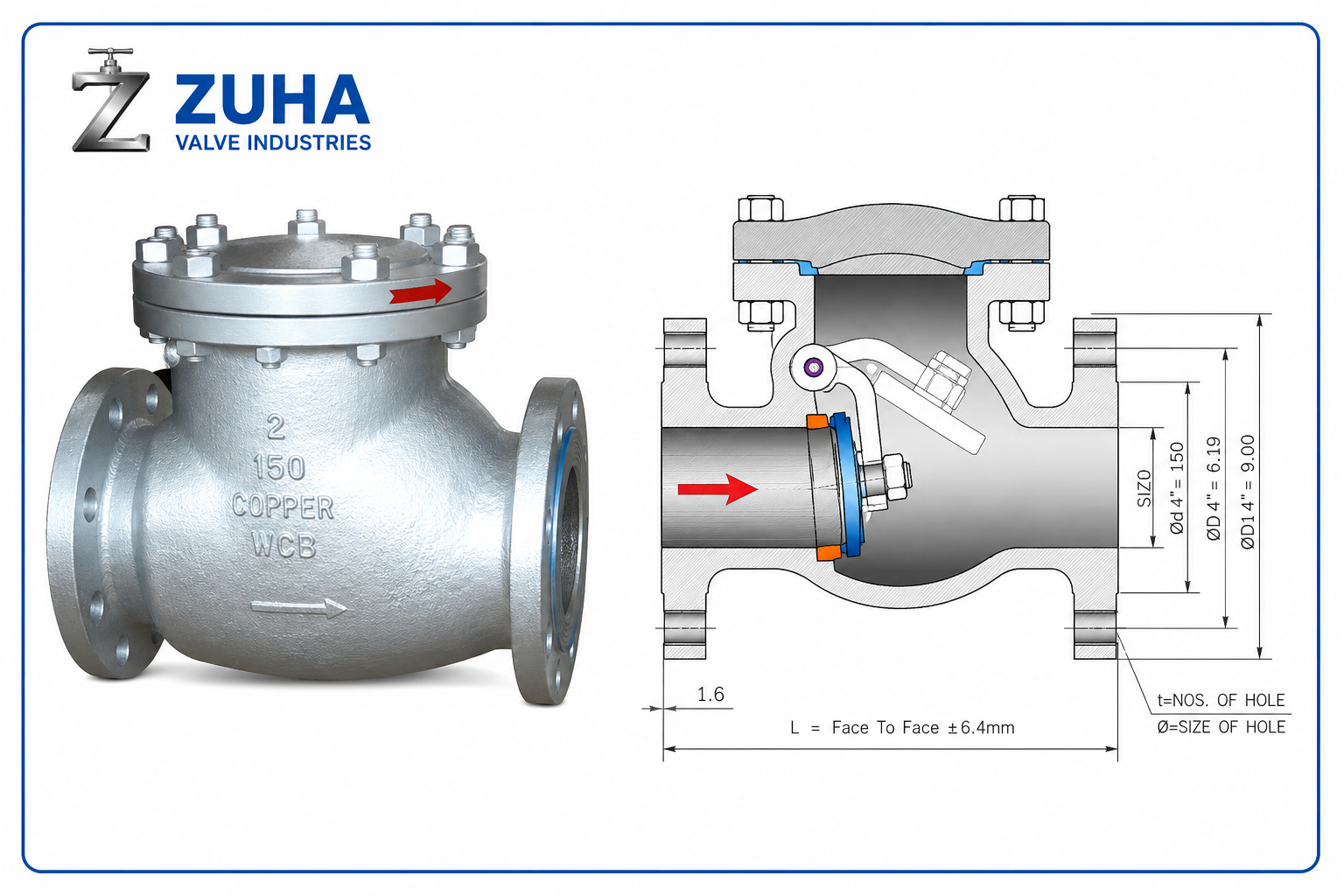

The Swing Type & Lift Type Check Valve is designed to prevent reverse flow
in industrial piping systems while ensuring safe and efficient operation. Swing Check Valves are
suitable for horizontal pipelines and vertical upward flow applications, while Lift Check Valves
are designed exclusively for horizontal installations. Manufactured with a robust bolted cover
and straight body design, these non-return valves provide reliable sealing, long service life,
and low maintenance. Optional bypass arrangements and Stellite hard-faced seating are available
for high-pressure and high-temperature services.
| Specification | Details |
|---|---|
| Valve Type | Swing Type Check Valve / Lift Type Check Valve (Non-Return Valve) |
| Design | API / British Standard, Straight Body with Bolted Cover |
| Body Material | ASTM A216 Gr. WCB, WC6, WC9, LCB, C12, C5, SS304, SS316 |
| Disc & Seat Material | Carbon Steel, SS304, SS304L, SS316, SS316L |
| Trim Material | F6, SS304, SS304L, SS316, SS316L |
| Pressure Rating | ASME Class 300 |
| End Connections | Flanged Ends (ASME B16.5), Butt Weld (ASME B16.25 & B16.11) |
| Flow Direction | Swing Check Valve: Horizontal or Vertical Upward Flow | Lift Check Valve: Horizontal Pipeline Only |
| Manufacturing Standards | BS 1868, API 600 |
| Testing Standards | API 598, BS 6755 |
| Joint Gasket | CAF, B8, Compressed Asbestos Fiber, SS304 Spiral Wound with CAF |
| Special Features | Optional By-Pass Arrangement Valve, Stellite Hard-Faced Seat for High Pressure & High Temperature Service, PTFE Seated Option for Low Vacuum Applications |
| Applications | Oil & Gas, Water, Air, Chemicals, Pharmaceutical, Petrochemical, Acid Handling, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries |
