Product Description

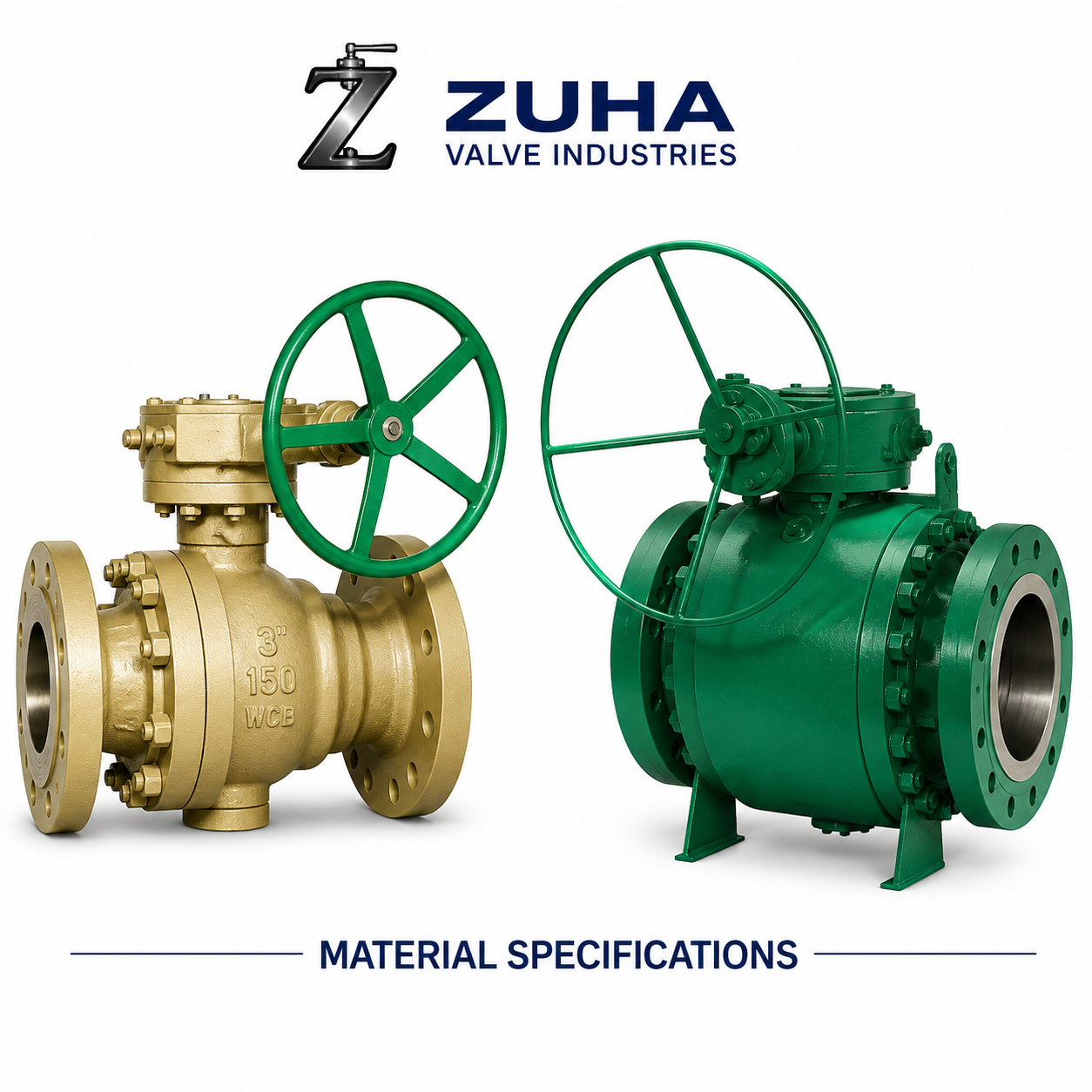

The ZUHA Valve Three Piece Trunnion Mounted & Floating Ball Valve is
designed for high-pressure industrial applications where dependable sealing, low operating
torque, and long service life are essential. Manufactured from premium carbon steel and
stainless steel materials, this valve features a blow-out proof stem and robust trunnion
mounted design to ensure reliable performance under demanding operating conditions. It is
ideal for oil & gas, petrochemical, chemical processing, pharmaceutical, and general
industrial services.
| Specification | Details |
|---|---|
| Product Type | ZUHA Valve Three Piece Trunnion Mounted & Floating Ball Valve |
| Design | Three Piece Ball Valve with Blow-Out Proof Stem Design |
| Body Material | ASTM A216 Gr. WCB, LF2, WCC, CF8, CF8M and equivalent grades |
| Ball & Trim Material | SS304, SS316 |
| Seat Material | PTFE, GFT, CFT |
| Operation | Manual Lever or Gear Operated |
| Pressure Rating | Class 900 |
| End Connections | Flanged, Butt Weld, Raised Face (RF), Ring Type Joint (RTJ) |
| Size Range | 2″ to 8″ |
| Port Type | Full Port & Reduced Port |
| Temperature Range | -20°C to 180°C (-4°F to 356°F) |
| Manufacturing Standard | BS 5351 |
| Testing Standards | API 598, BS 6755 |
| Applications | Air, Gas, Water, Chemicals, Pharmaceutical, Oil & Gas, Acid, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries |
