Product Description

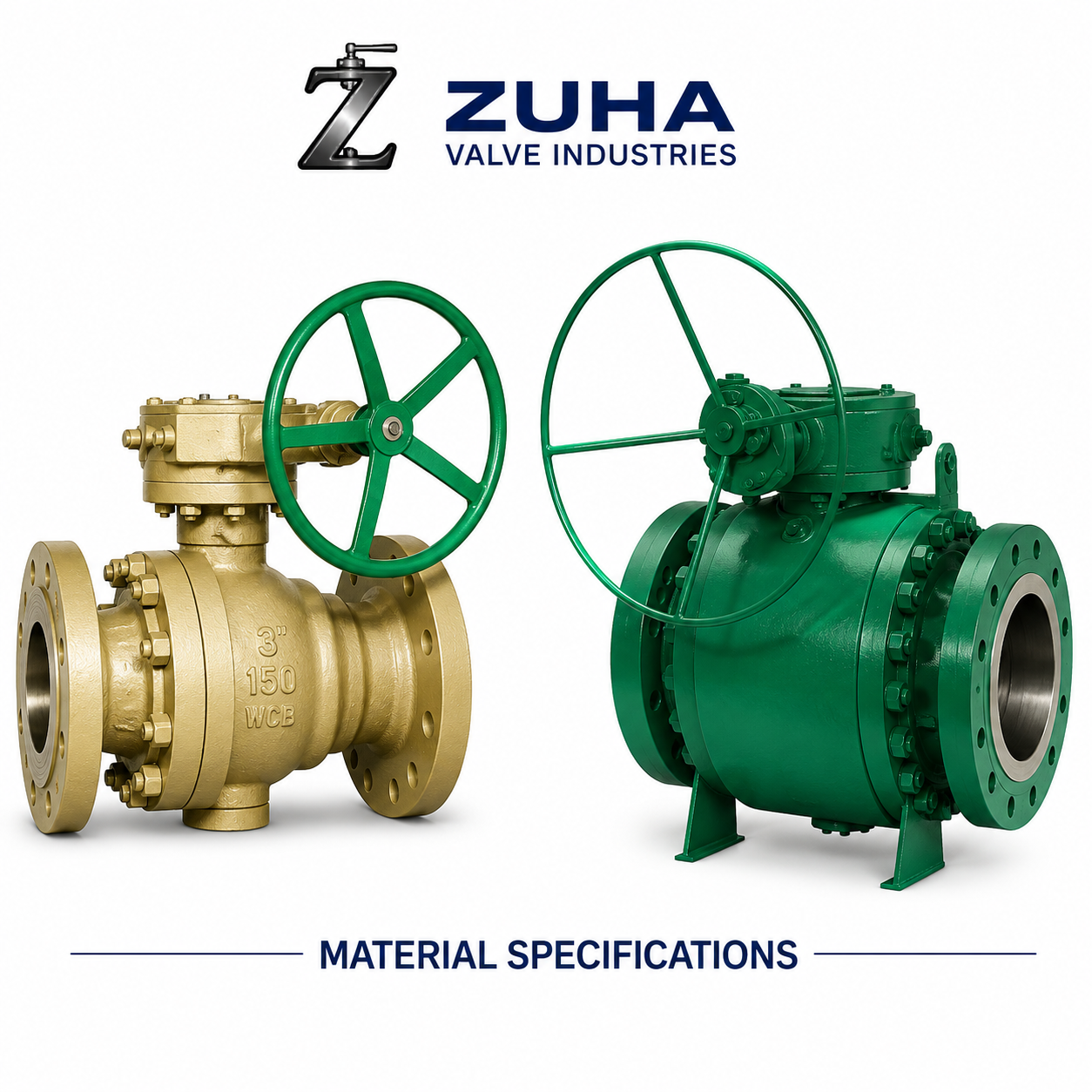

The ZUHA Valve Three Piece Trunnion Mounted & Floating Ball Valve is
engineered for high-pressure and critical process applications requiring exceptional
strength, reliable sealing, and long service life. Manufactured from premium carbon
steel and stainless steel materials, this valve features a blow-out proof stem and
trunnion-mounted/floating ball design to provide smooth operation and dependable
performance under severe operating conditions. It is widely used in oil & gas,
petrochemical, chemical, pharmaceutical, and general industrial applications.
| Specification | Details |
|---|---|
| Product Type | ZUHA Valve Three Piece Trunnion Mounted & Floating Ball Valve |
| Design | Three Piece Ball Valve with Blow-Out Proof Stem Design |
| Body Material | ASTM A216 Gr. WCB, WCC, LF2, CF8, CF8M and equivalent grades |
| Ball & Trim Material | SS304, SS316 |
| Seat Material | PTFE, GFT, CFT |
| Operation | Manual Lever or Gear Operated |
| Pressure Rating | Class 1500 |
| End Connections | Flanged, Butt Weld, Raised Face (RF), Ring Type Joint (RTJ) |
| Size Range | 2″ to 8″ |
| Port Type | Full Port & Reduced Port |
| Temperature Range | -20°C to 180°C (-4°F to 356°F) |
| Manufacturing Standards | BS 5351, API 6D |
| Testing Standards | API 598, BS 6755 |
| Applications | Oil Fields, Petroleum Industries, Air, Gas, Water, Chemicals, Pharmaceutical, Acid, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries |
