Product Description

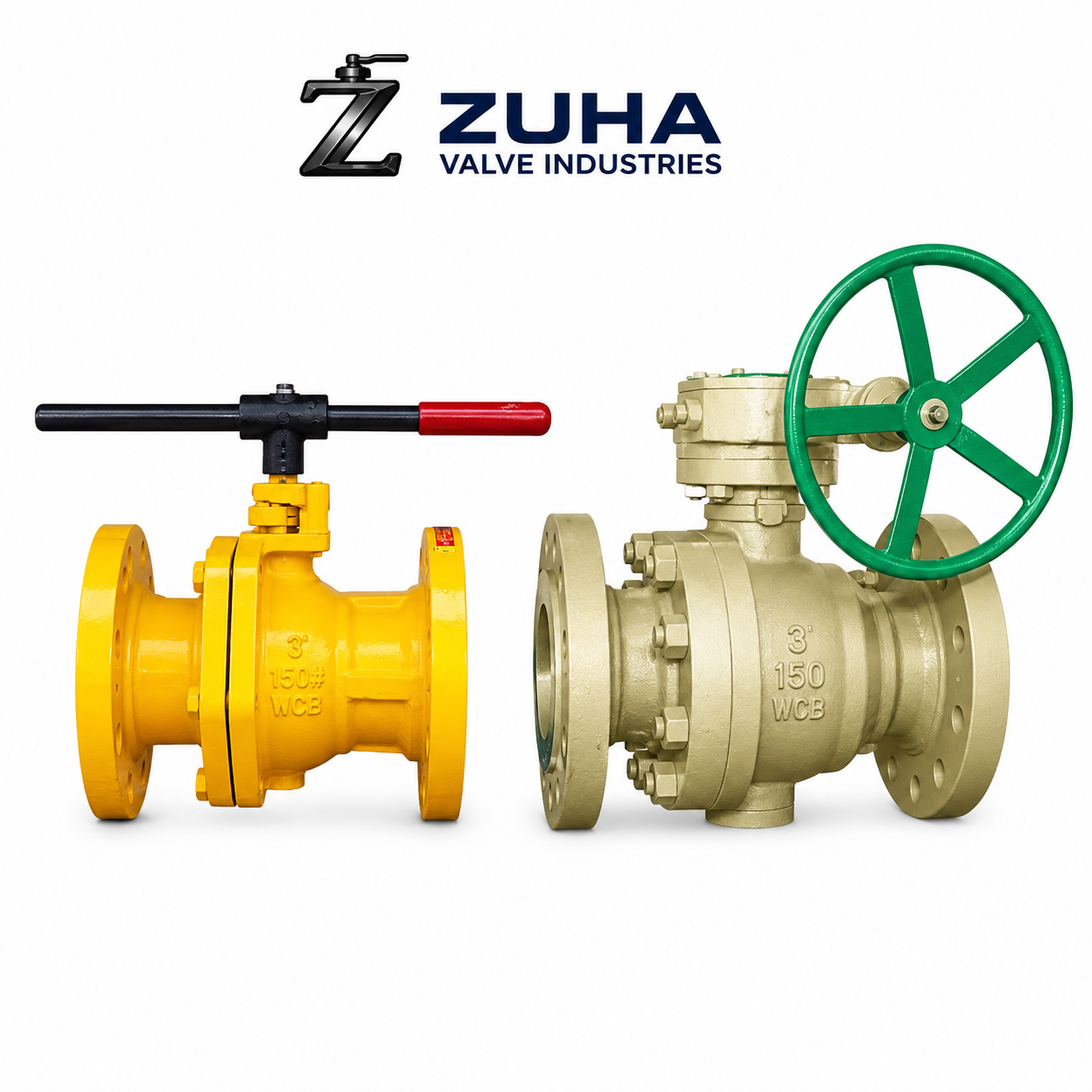

The ZUHA Valve Two Piece Ball Valve is designed for reliable shut-off
performance in medium and high-pressure industrial applications. Featuring a blow-out
proof stem design, premium stainless steel ball and trim, and robust cast steel
construction, this valve ensures excellent sealing, durability, and long service life.
Available with manual lever or gear operation, it is suitable for a wide range of
process industries.
| Specification | Details |
|---|---|
| Product Type | ZUHA Valve Two Piece Ball Valve |
| Design | Two Piece Ball Valve with Blow-Out Proof Stem Construction |
| Body Material | ASTM A216 Gr. WCB, CF8, CF8M and equivalent grades |
| Ball & Trim Material | SS304, SS316 |
| Seat Material | PTFE, GFT, CFT |
| Operation | Manual Lever or Gear Operated |
| Pressure Rating | Class 300 & Class 600 |
| End Connections | Flanged, Butt Weld (BW), Raised Face (RF) & Ring Type Joint (RTJ) |
| Size Range | 2″ to 12″ |
| Port Type | Full Port & Reduced Bore |
| Temperature Range | -20°C to 180°C (-4°F to 356°F) |
| Manufacturing Standards | BS 5351, API 6D |
| Testing Standards | API 598, BS 6755 |
| Applications | Oil Fields, Petroleum Industries, Air, Gas, Water, Chemicals, Pharmaceutical, Acid Handling, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries |
