Product Description

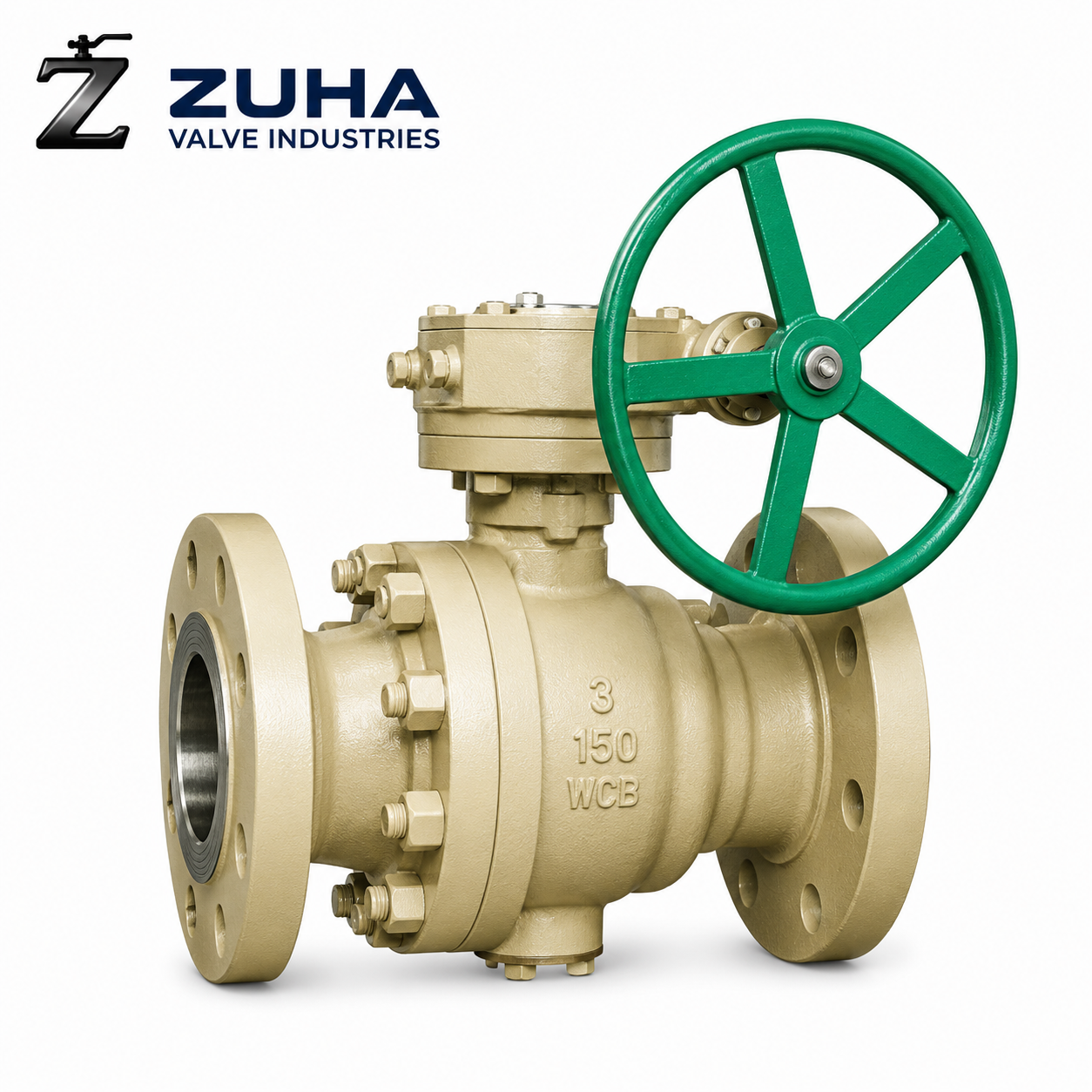

The ZUHA Valve Two Piece Trunnion Mounted Cast Steel Ball Valve is
engineered for high-pressure and critical industrial applications requiring dependable
shut-off performance, low operating torque, and long service life. Manufactured from
premium cast steel and stainless steel materials, the valve features a blow-out proof
stem and trunnion-mounted ball design for enhanced stability and sealing under demanding
operating conditions. It is suitable for oil & gas, petrochemical, pharmaceutical, and
other process industries.
| Specification | Details |
|---|---|
| Product Type | ZUHA Valve Two Piece Trunnion Mounted Cast Steel Ball Valve |
| Design | Two Piece Ball Valve with Blow-Out Proof Stem Design |
| Body Material | ASTM A216 Gr. WCB, CF8, CF8M and equivalent grades |
| Ball & Trim Material | SS304, SS316 |
| Seat Material | PTFE, GFT, CFT |
| Operation | Manual Lever or Gear Operated |
| Pressure Rating | Class 1500 |
| End Connections | Flanged, Butt Weld, Raised Face (RF), Ring Type Joint (RTJ) |
| Size Range | 2″ to 8″ |
| Port Type | Full Port & Reduced Port |
| Temperature Range | -20°C to 180°C (-4°F to 356°F) |
| Manufacturing Standard | BS 5351 |
| Testing Standards | API 598, BS 6755 |
| Applications | Oil Fields, Petroleum Industries, Air, Gas, Water, Chemicals, Pharmaceutical, Acid, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries |
