Product Description

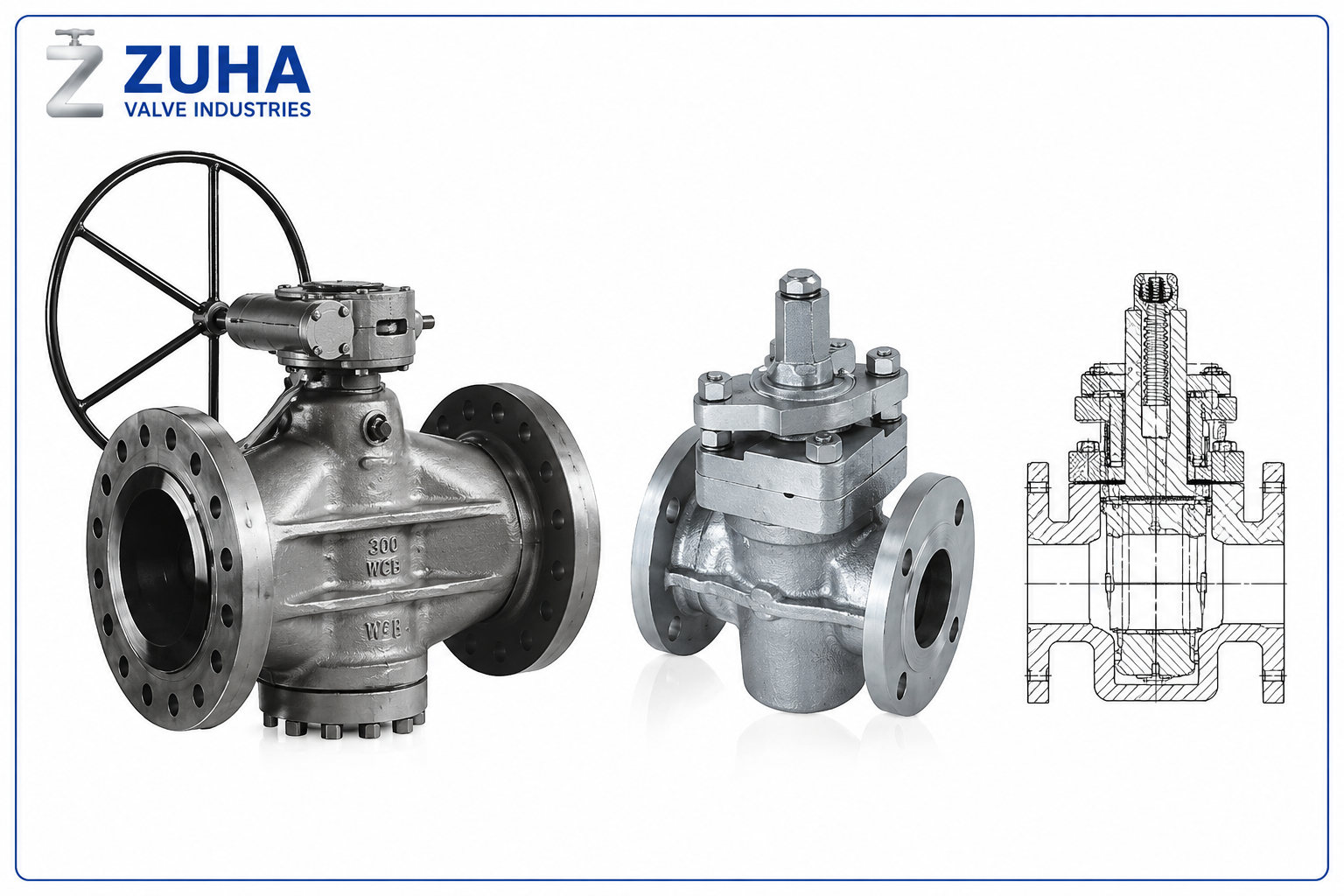

The Lubricated Taper Plug Valve is designed for reliable shut-off and flow control
in demanding industrial applications. Featuring a quarter-turn operation and a metal-to-metal
sealing mechanism, the valve provides excellent sealing performance, long service life, and
low operating torque. Its unique online maintenance capability allows servicing without
removing the valve from the pipeline, minimizing downtime and maintenance costs. Available in
multiple body materials, pressure classes, and end connections, it is widely used in oil & gas,
chemical processing, petrochemical plants, and other industrial systems.
| Specification | Details |
|---|---|
| Valve Type | Lubricated Taper Plug Valve |
| Operation | Quarter Turn |
| Body Material | Carbon Steel, Cast Iron, Ductile Iron (SG Iron), CF8, CF8M |
| Pressure Class | Class 125, Class 150 |
| Available Patterns | Standard Pattern, Regular Pattern, Short Pattern, Venturi Pattern, Full Bore |
| Flow Configuration | Straight Way |
| Size Range | Screwed End: ½” to 3″ Flanged End: ½” to 10″ |
| End Connections | Screwed Ends, Flanged Ends |
| Key Features | Online Maintenance Capability, Large Protected Metal-to-Metal Seats, Low Operating Torque, Long Service Life, Tight Shut-Off |
| Manufacturing Standard | API 6D |
| Inspection & Testing | API 598, ISO 15848 |
| Applications | Oil & Gas, Chemical Processing, Petrochemical Plants, Refineries, Water Treatment, Industrial Pipelines and General Process Industries |
