Product Description

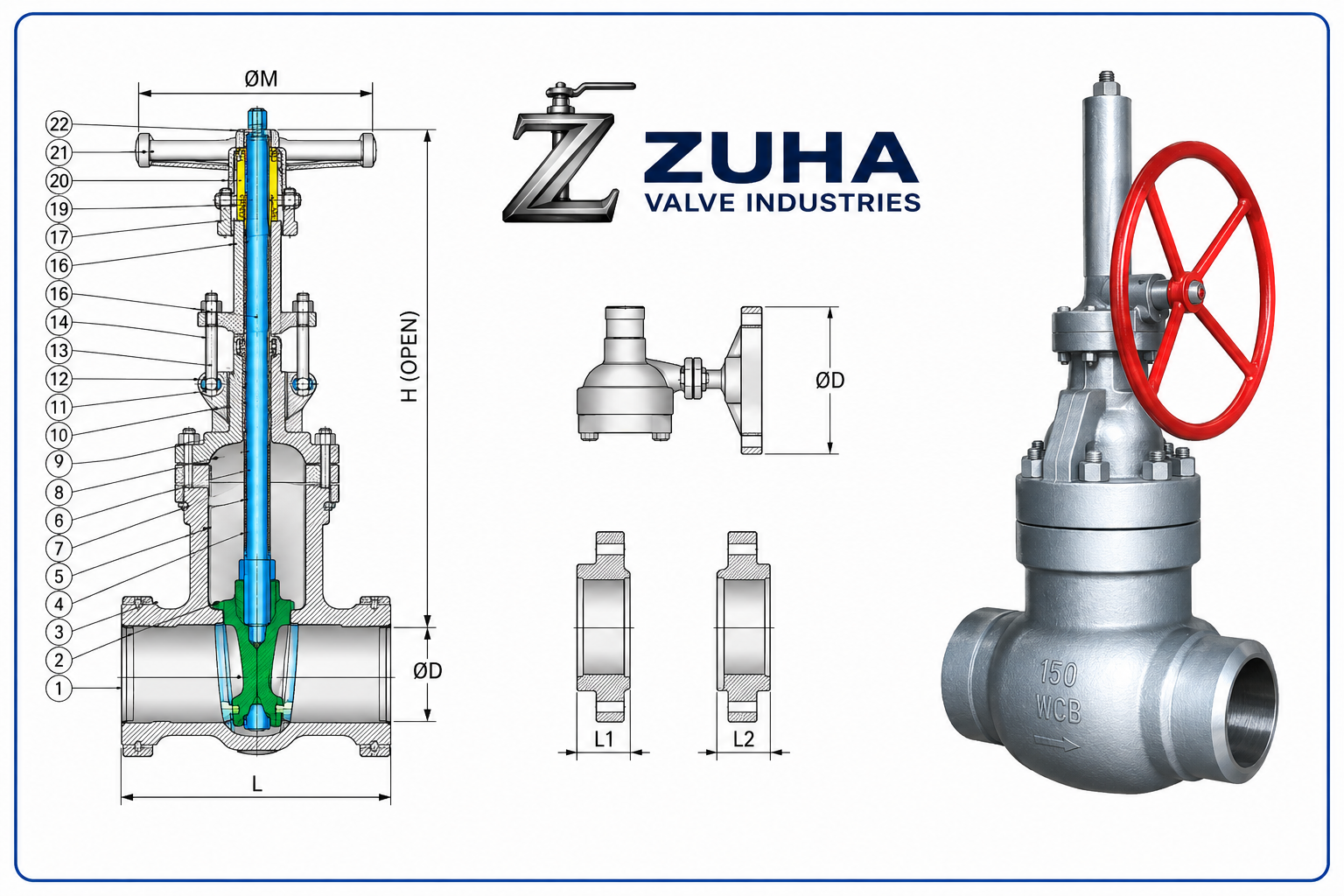

The ZUHA Valve Pressure Seal Gate Valve – Class 1500 is engineered for
severe high-pressure and high-temperature applications where superior sealing integrity
and operational reliability are essential. The pressure seal bonnet design utilizes
internal system pressure to enhance bonnet sealing, making it an ideal solution for
power plant steam service, oil & gas, petrochemical, refinery, and other critical
industrial processes. Manufactured in accordance with API and ASME standards, the valve
provides exceptional durability, low maintenance, and long service life.
| Specification | Details |
|---|---|
| Product Type | ZUHA Valve Pressure Seal Gate Valve |
| Design Standards | API 600, ASME B16.34, BS 1414 |
| Valve Design | Pressure Seal Bonnet, Full Port, Flexible Wedge, Outside Screw & Yoke (OS&Y) |
| Body Material | Cast Steel ASTM A216 WCB, WC6, WC9, WC5, LCB, CF8, CF8M, CF3M |
| Disc & Seat Material | Carbon Steel with SS304, SS304L, SS316, SS316L Seating |
| Trim Material | F6, SS304, SS304L, SS316, SS316L, Stellite Hard Facing (API Trim 5 Standard) |
| Operation | Hand Wheel, Gear Box, Electric or Pneumatic Actuator |
| Pressure Rating | ASA Class 1500 |
| Size Range | 2″ to 20″ |
| End Connections | Flanged Ends (RF/RTJ), Butt Weld (BW), ASME B16.10 & ASME B16.25 |
| Manufacturing Standards | BS 1414, API 600 |
| Testing Standards | API 598, BS 6755 |
| Key Features | Pressure Seal Bonnet, Flexible Wedge, Full Port Design, Stellite Faced Seats, 13% Chrome Non-Rotating Stem, Low Fugitive Emission Packing, Two-Piece Gland Design, 100% Pressure Tested, Full Material Traceability |
| Optional Features | Gear, Electric & Pneumatic Actuators, Bypass & Drain Connections, NACE Service, Oxygen & Chlorine Cleaning, Alternative Trim & Body Materials |
| Applications | Power Plant Steam Service, Oil & Gas, Air, Water, Chemicals, Pharmaceutical, Petrochemical, Petroleum, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries and Edible Oil Processing |
