Product Description

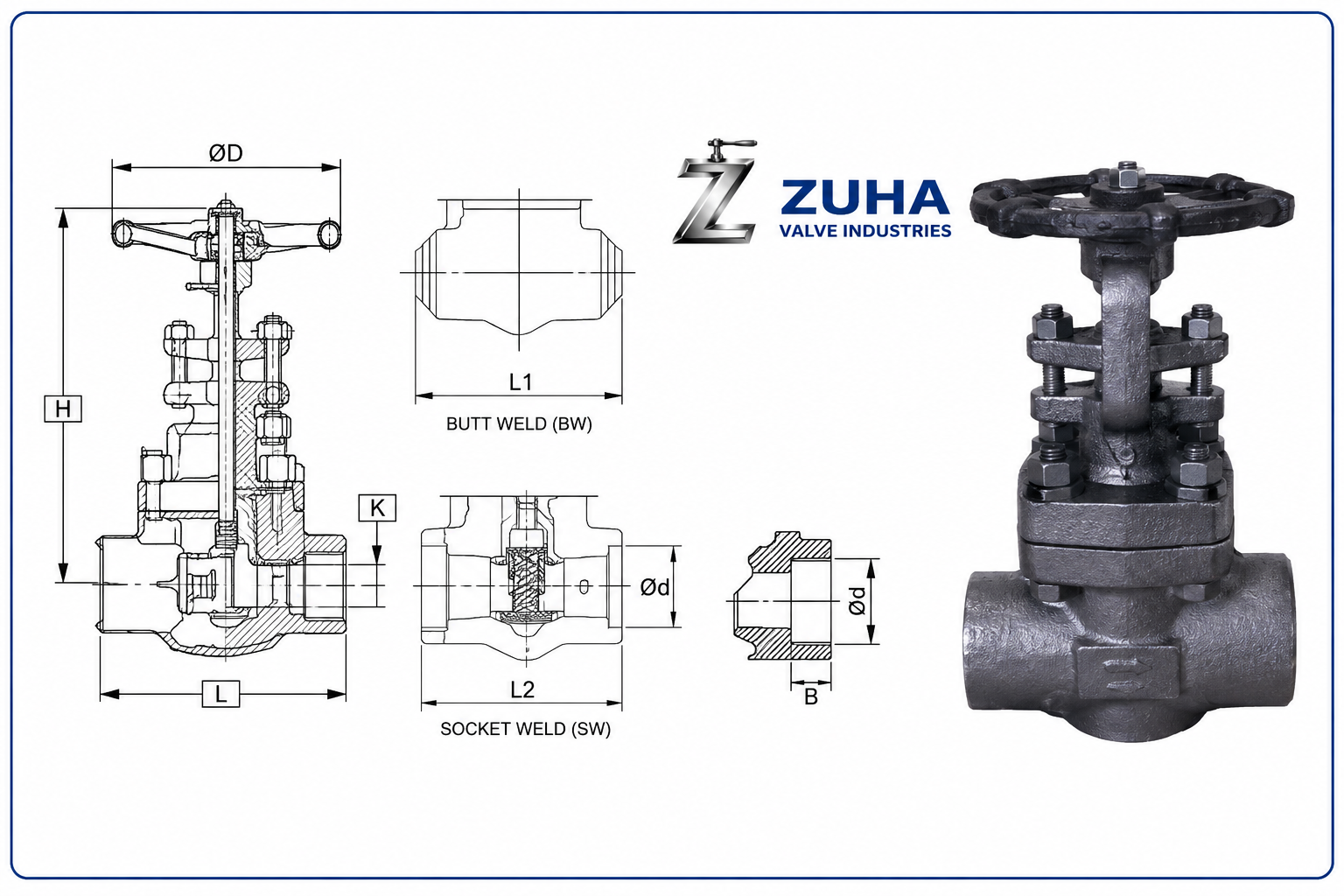

The Forged Steel Welded Bonnet Gate Valve is designed for critical high-pressure
and high-temperature applications where maximum strength and leak-tight performance are essential.
The welded bonnet construction eliminates potential leakage paths while providing superior
structural integrity. Manufactured from premium forged carbon steel, alloy steel, and stainless
steel materials, this valve delivers reliable isolation and long service life in demanding
industrial environments.
| Specification | Details |
|---|---|
| Valve Type | Forged Steel Welded Bonnet Gate Valve |
| Design | API 602 / British Standard |
| Body Material | Forged Carbon Steel A105, F11, F22, LF2, F5, F9, F91, CF8, CF8M, CF3M |
| Disc & Seat Material | Forged Carbon Steel, SS304, SS304L, SS316, SS316L |
| Trim Material | F6, SS304, SS304L, SS316, SS316L, Stellite Hard Facing |
| Operation | Hand Wheel |
| Pressure Rating | ASME Class 1500 |
| Size Range | ½” to 2″ |
| End Connections | Flanged Ends (ANSI B16.5), Butt Weld (ASME B16.10 & B16.25) |
| Bonnet Type | Welded Bonnet Construction |
| Manufacturing Standards | BS 5352, API 602 |
| Testing Standards | API 598, BS 6755 |
| Applications | Air, Gas, Water, Boiler Steam, Oil, Chemicals, Acids, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries, Power Plants, Petroleum & Petrochemical Industries |
