Product Description

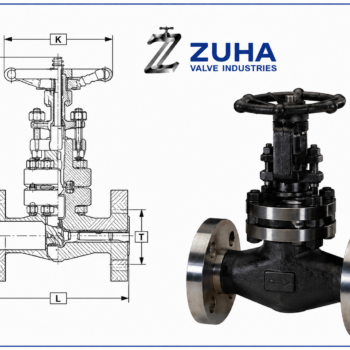

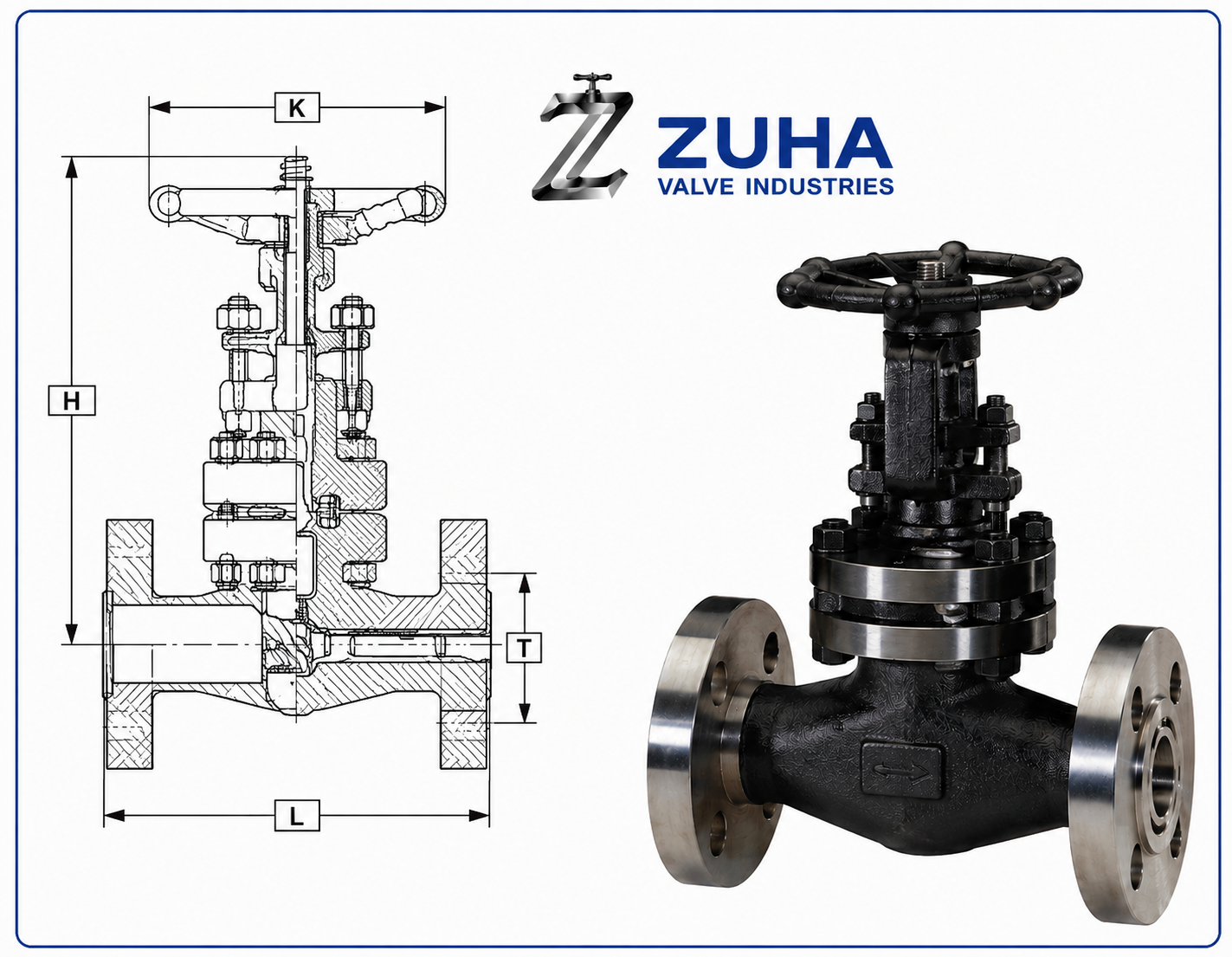

The Forged Steel Flanged End Valve is designed for ultra high-pressure and
high-temperature industrial applications requiring superior strength, leak-tight sealing, and
long service life. Manufactured from premium forged carbon steel, alloy steel, and stainless
steel, this valve offers dependable performance in critical process systems. Built to
internationally recognized standards, it is ideal for use in oil & gas, petrochemical,
power generation, steam, and chemical processing industries.
| Specification | Details |
|---|---|
| Design | API 602 / British Standard |
| Body Material | Forged Carbon Steel A105, F11, F22, LF2, F5, F9, F91, CF8, CF8M, CF3M |
| Disc & Seat Material | Forged Carbon Steel, SS304, SS304L, SS316, SS316L |
| Trim Material | F6, SS304, SS304L, SS316, SS316L, Stellite Hard Facing |
| Operation | Hand Wheel |
| Pressure Rating | ASME Class 2500 |
| Size Range | ½” to 2″ |
| End Connections | Flanged Ends (ANSI B16.5), Butt Weld (ASME B16.10 & B16.25) |
| Manufacturing Standards | BS 5352, API 602 |
| Testing Standards | API 598, BS 6755 |
| Applications | Air, Gas, Water, Boiler Steam, Oil, Chemicals, Acids, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries, Power Plants, Petroleum & Petrochemical Industries |
