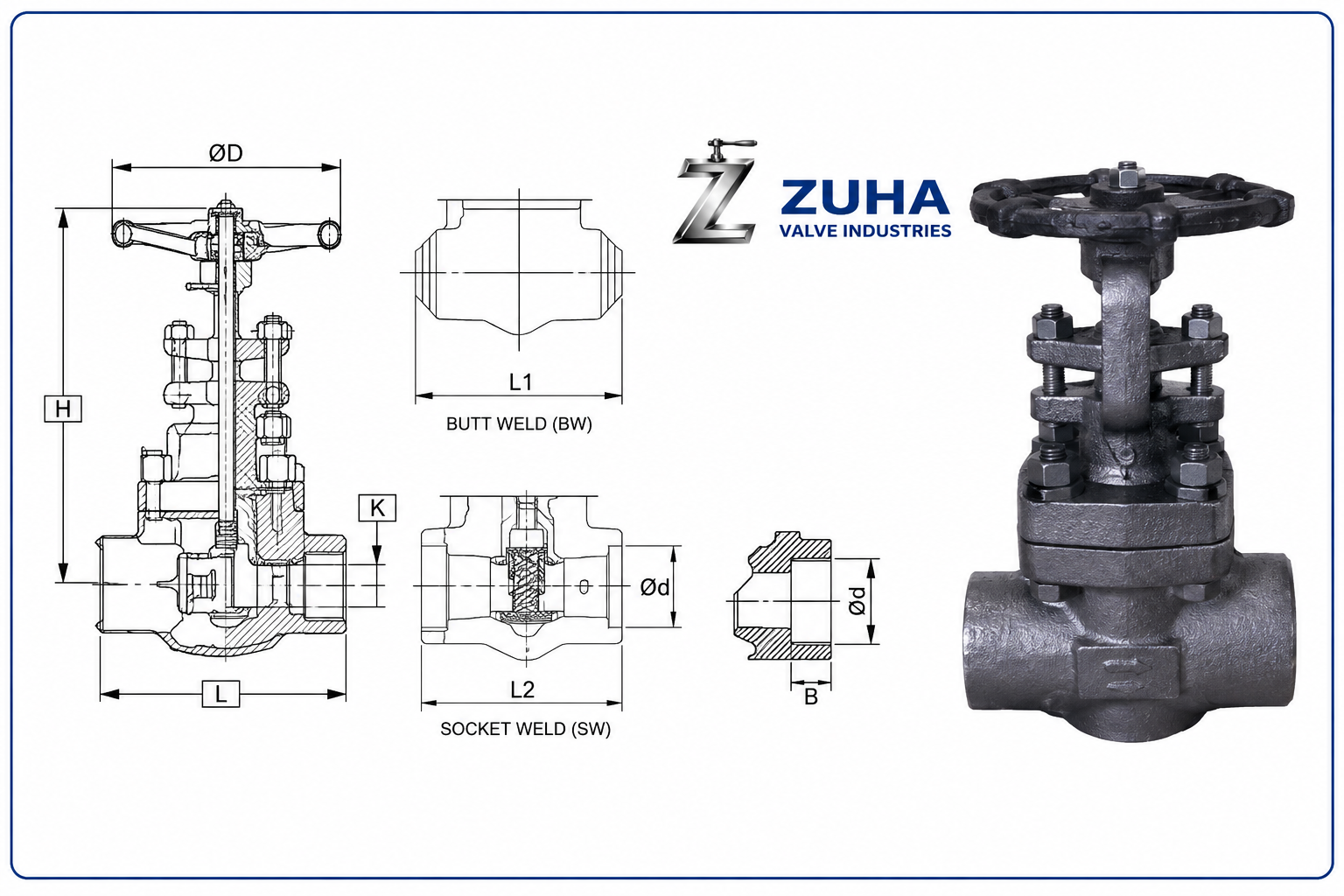

Product Description
The Forged Steel Valve is engineered for reliable performance in high-pressure,
high-temperature, and critical industrial applications. Manufactured from premium forged carbon
steel, alloy steel, and stainless steel materials, it offers exceptional strength, leak-proof
sealing, and long service life. Available in multiple material grades and end connections, the
valve is designed in accordance with international standards, making it ideal for demanding
applications across oil & gas, power generation, petrochemical, steam, and chemical industries.
| Specification | Details |
|---|---|
| Design | API 602 / British Standard |
| Body Material | Forged Carbon Steel A105, F11, F22, LF2, F5, F9, F91, CF8, CF8M, CF3M |
| Disc & Seat Material | Forged Carbon Steel, SS304, SS304L, SS316, SS316L, Gun Metal (GM), Monel |
| Trim Material | F6, SS304, SS304L, SS316, SS316L, Monel, Stellite Hard Facing |
| Operation | Hand Wheel |
| Pressure Rating | ASME Class 800 |
| Size Range | ½” to 2″ |
| End Connections | Screwed Ends, Socket Weld, Butt Weld (ASME B16.10 & B16.25) |
| Manufacturing Standards | BS 5352, API 602 |
| Testing Standards | API 598, BS 6755 |
| Applications | Air, Gas, Water, Boiler Steam, Oil, Chemicals, Acids, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries, Power Plants, Petroleum & Petrochemical Industries |
