Product Description

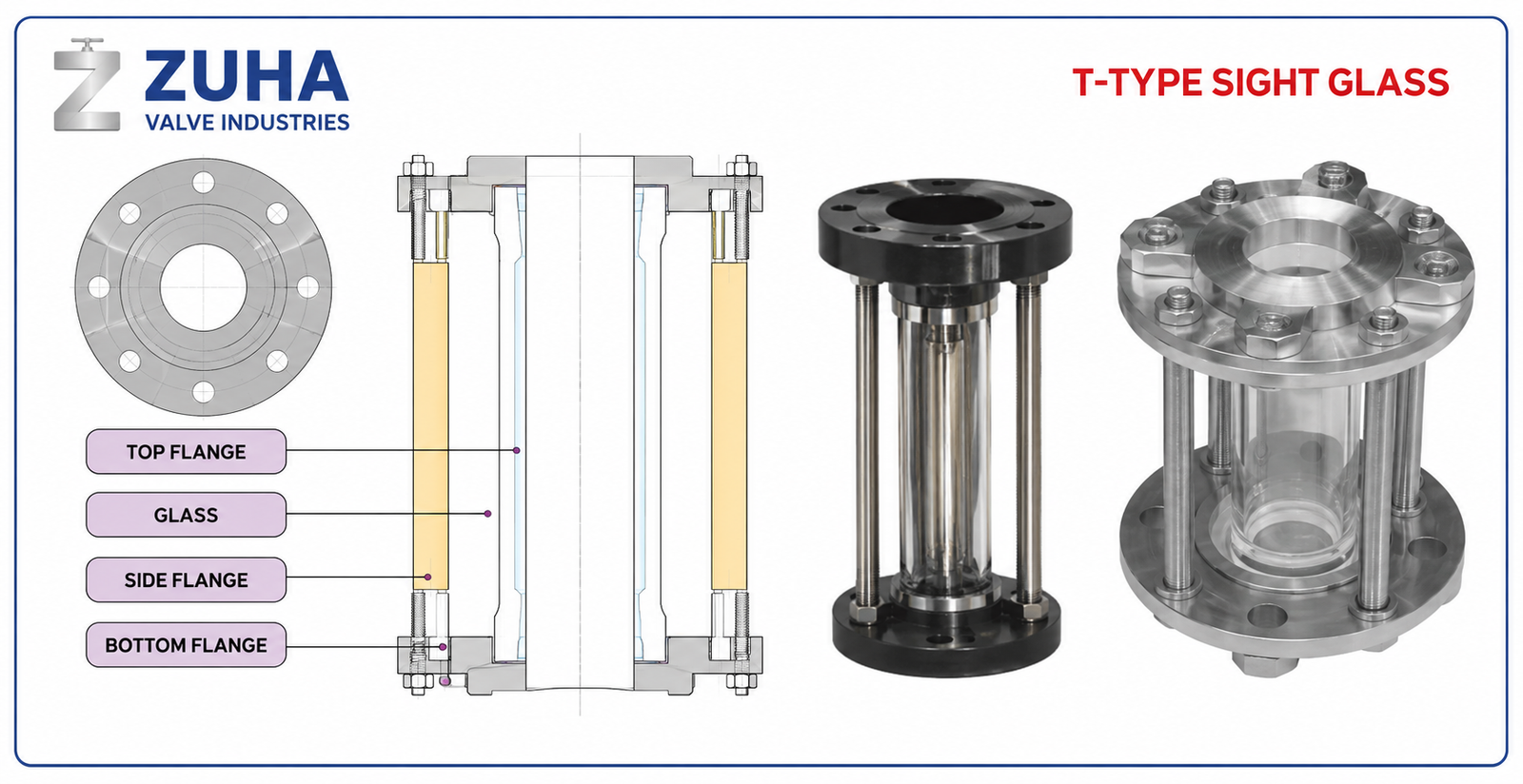

The Sight Glass Sight Flow Indicator is designed for continuous visual
monitoring of liquid flow in industrial pipelines. Its full-view design allows operators to
observe flow direction, color, clarity, turbidity, and the presence of media without
interrupting the process. Suitable for both horizontal and vertical installation, the
bi-directional construction ensures easy installation and dependable performance across a
wide range of industrial applications.
| Specification | Details |
|---|---|
| Product Type | Full View Sight Glass / Sight Flow Indicator |
| Design | Bi-Directional Full View Design |
| Body Material | Cast Iron, Carbon Steel (WCB), CF8 (SS304), CF8M (SS316), Mild Steel, PP, PFA Lined, PTFE Lined |
| Viewing Window | Toughened Borosilicate Glass |
| Design Temperature | Up to 200°C (Depending on Model) |
| Design Pressure | Up to 20 kg/cm² (Depending on Model) |
| Line Size | Up to 200 NB |
| End Connections | Flanged, Screwed BSP/NPT, Butt Weld |
| Installation | Horizontal or Vertical Pipeline Mounting |
| Key Features | Full Flow Visibility, Bi-Directional Operation, Corrosion Resistant Construction, Easy Installation, Low Maintenance, Reliable Process Monitoring |
| Applications | Water, Condensate, Coolant, Diesel, Solvents, Chemicals, Alcohol, Lubricating Oil, Juices, Pharmaceutical Plants, Sugar Industries, Textile Mills, Food Processing, Organic Chemical Plants, Polymer Manufacturing, Chemical Processing and General Industrial Pipelines |
