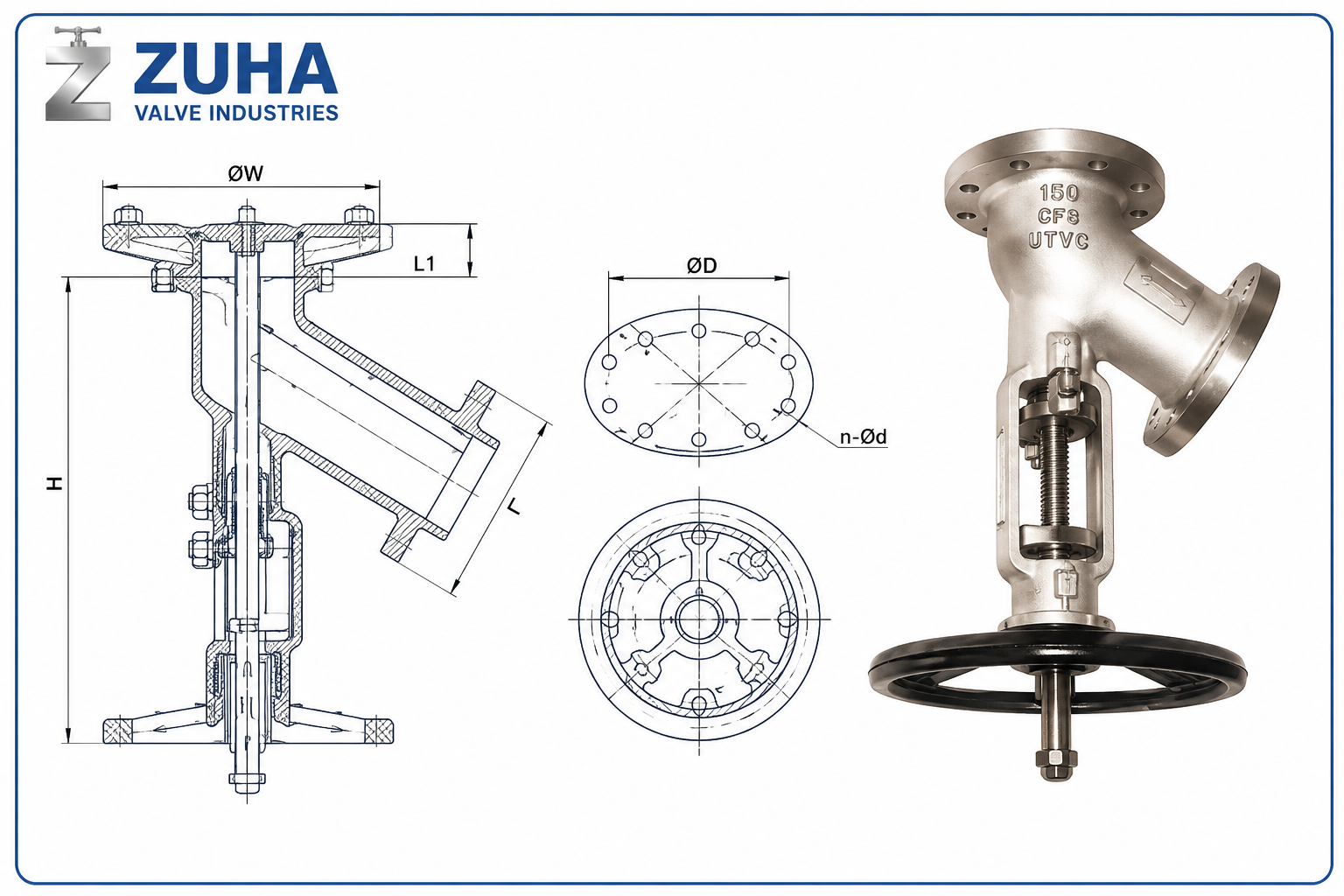

Product Description
The Flush Bottom Valve is specially designed for complete draining of reactors,
storage vessels, tanks, and process equipment without leaving residual material. Its dead-space
free construction eliminates product hold-up, making it ideal for handling abrasive slurries,
viscous liquids, semi-solid media, and corrosive chemicals. Manufactured using premium stainless
steel materials with high-quality sealing components, the valve provides reliable performance,
leak-tight operation, and long service life in demanding industrial applications.
| Specification | Details |
|---|---|
| Product Type | Flush Bottom Valve |
| Application Size | ½” to 6″ (25 mm to 250 mm) |
| Pressure Rating | Class 150 to Class 600 |
| Body Material | ASTM A351 CF8, CF8M |
| Bonnet | ASTM A351 CF8, CF8M |
| Spindle | ASTM A351 CF8, CF8M |
| Plug | ASTM A351 CF8, CF8M |
| Plug Nut | ASTM A351 CF8, CF8M |
| Gland Flange & Gland Bush | ASTM A351 CF8, CF8M |
| Yoke Bush | Ductile Iron / Bronze |
| Gland Packing | PTFE |
| Gasket | SS304 / SS316 Spiral Wound with PTFE Filler |
| Hand Wheel | Cast Iron, Mild Steel, SG Iron |
| Studs & Nuts | B7 / 2H Carbon Steel |
| Seat Options | PTFE (Teflon), Neoprene, Viton |
| Key Features | Dead-Space Free Design, Complete Vessel Drainage, Leak-Proof Sealing, Suitable for Abrasive & Viscous Media, Corrosion Resistant Construction |
| Applications | Reactors, Storage Tanks, Pressure Vessels, Chemical Plants, Pharmaceutical Industries, Food Processing, Slurry Handling Systems, Paint, Dyes, Petrochemical and General Process Industries |
