Product Description

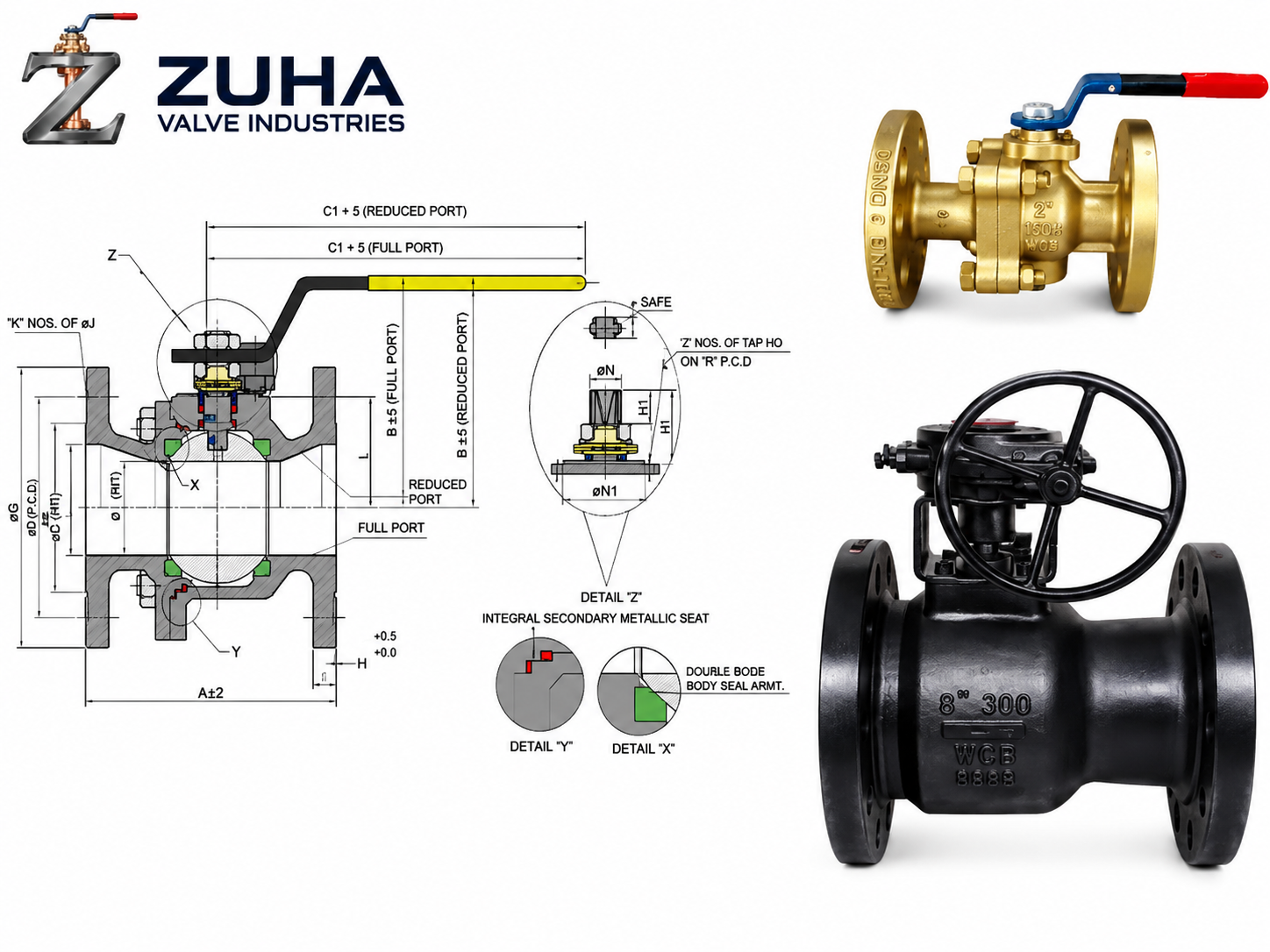

The UTVC Fire Safe Ball Valve is designed to provide superior safety,
reliability, and performance in critical industrial applications. Manufactured in both
single-piece and two-piece designs, the valve features a blow-out proof stem, fire-safe
construction, and ISO 5211 mounting pad for automation compatibility. Tested to international
standards, it is ideal for handling high-pressure fluids in oil & gas, petrochemical,
chemical, and process industries.
| Specification | Details |
|---|---|
| Product Type | UTVC Fire Safe Ball Valve (Single Piece & Two Piece) |
| Design | Fire Safe Design with Blow-Out Proof Stem Construction |
| Body Material | ASTM A216 WCB, CF8, CF8M, 316L and equivalent grades |
| Ball & Trim Material | SS304, SS304L, SS316, SS316L |
| Seat Material | PTFE, GFT, CFT |
| Operation | Manual Lever or Pneumatic Actuator |
| Pressure Rating | ASA 150, 300, 600 & 900 |
| Maximum Working Pressure | ANSI 150: 275 PSI WOG @ 100°F ANSI 300: 720 PSI WOG @ 100°F |
| End Connections | Screwed Ends, Socket Weld & Butt Weld |
| Port Type | Full Port & Reduced Port |
| Valve Size | 100–150 mm, 150–200 mm, 200–250 mm, 250–300 mm, 300–350 mm, 350–400 mm |
| Temperature Range | RTFE: -20°F to 450°F |
| Manufacturing Standards | BS 5351, ASME B16.34, API 6D, ISO 14313, API 609, MSS SP-72 |
| Testing Standards | API 598, BS 6755, API 607 (5th Edition), ANSI/ASME B16.34 |
| Mounting Pad | ISO 5211 Standard Mounting Pad |
| Face-to-Face Standard | ANSI B16.10 |
| Available Colors | Black, Green, Grey, Sky Blue, White |
| Certification | ISO 9001:2008 Certified |
| Applications | Oil & Gas, Petrochemical, Chemical Processing, Steam, Acid, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries, Gas Fittings, Oil Fittings & Water Fittings |
