Product Description

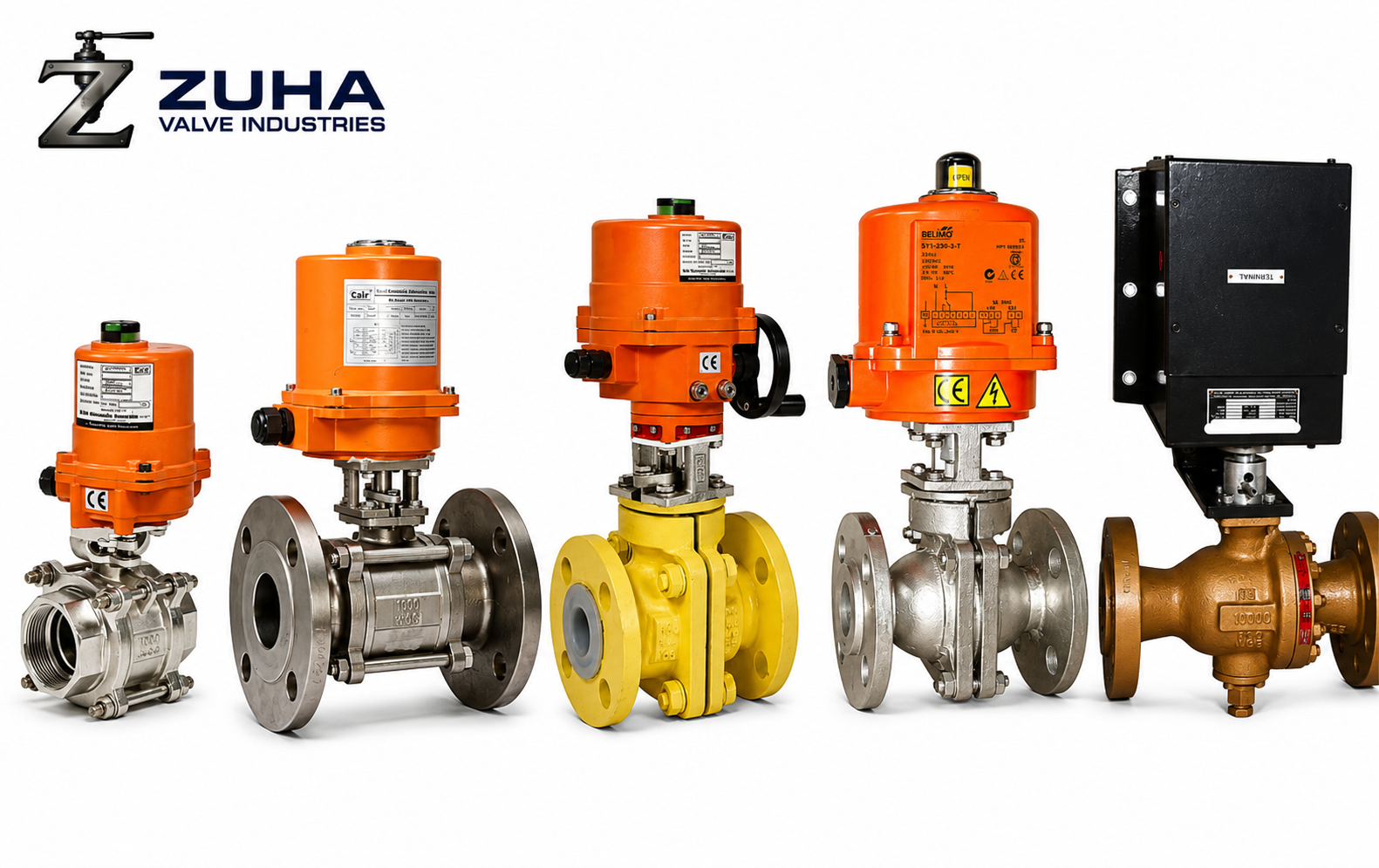

The ZUHA Valve Electric Actuated PFA/FEP/PTFE Lined Ball Valve is designed
for highly corrosive process media requiring safe, reliable, and automated flow control.
Featuring a low-torque design, ISO 5211 mounting pad, anti-blowout stem, and fully lined
wetted components, the valve delivers outstanding chemical resistance, superior sealing,
and long service life. It is ideal for chemical processing, pharmaceutical, water treatment,
and industrial automation applications.
| Specification | Details |
|---|---|
| Product Type | Electric Actuated PFA / FEP / PTFE Lined Ball Valve |
| Lining Material | PFA, FEP & PTFE Lined on All Wetted Parts |
| Design Standards | ASME B16.34, HG/T 3704 |
| Face-to-Face Standard | ASME B16.10, GB/T 12221 |
| Body Material | ASTM A216 Gr. WCB, CF8, CF8M and equivalent grades |
| Ball & Trim Material | SS304, SS316 |
| Seat Material | PTFE, GFT, CFT, PFA, FEP |
| Operation | Electric Actuator |
| Pressure Rating | Class 150, Class 300, 1000 PSI & 2000 PSI |
| End Connections | Flanged Ends & Screwed Ends |
| Flange Standards | ASME B16.5, GB/T 9119, DIN, JIS |
| Size Range | 1″ to 6″ |
| Port Type | Full Port & Reduced Port |
| Temperature Range | 180°C to 230°C |
| Manufacturing Standard | BS 5351 |
| Testing Standards | API 598, BS 6755, GB/T 13927 |
| Key Features | Low Torque Design, ISO 5211 Mounting Pad, Anti-Blowout Stem, Locked-In PFA Lining, Compact Design, Full Port Flow, Vacuum Service Compatible, Complete Accessory Support |
| Applications | Air, Gas, Water, Chemicals, Pharmaceutical, Oil & Gas, Acid Handling, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries |
