Product Description

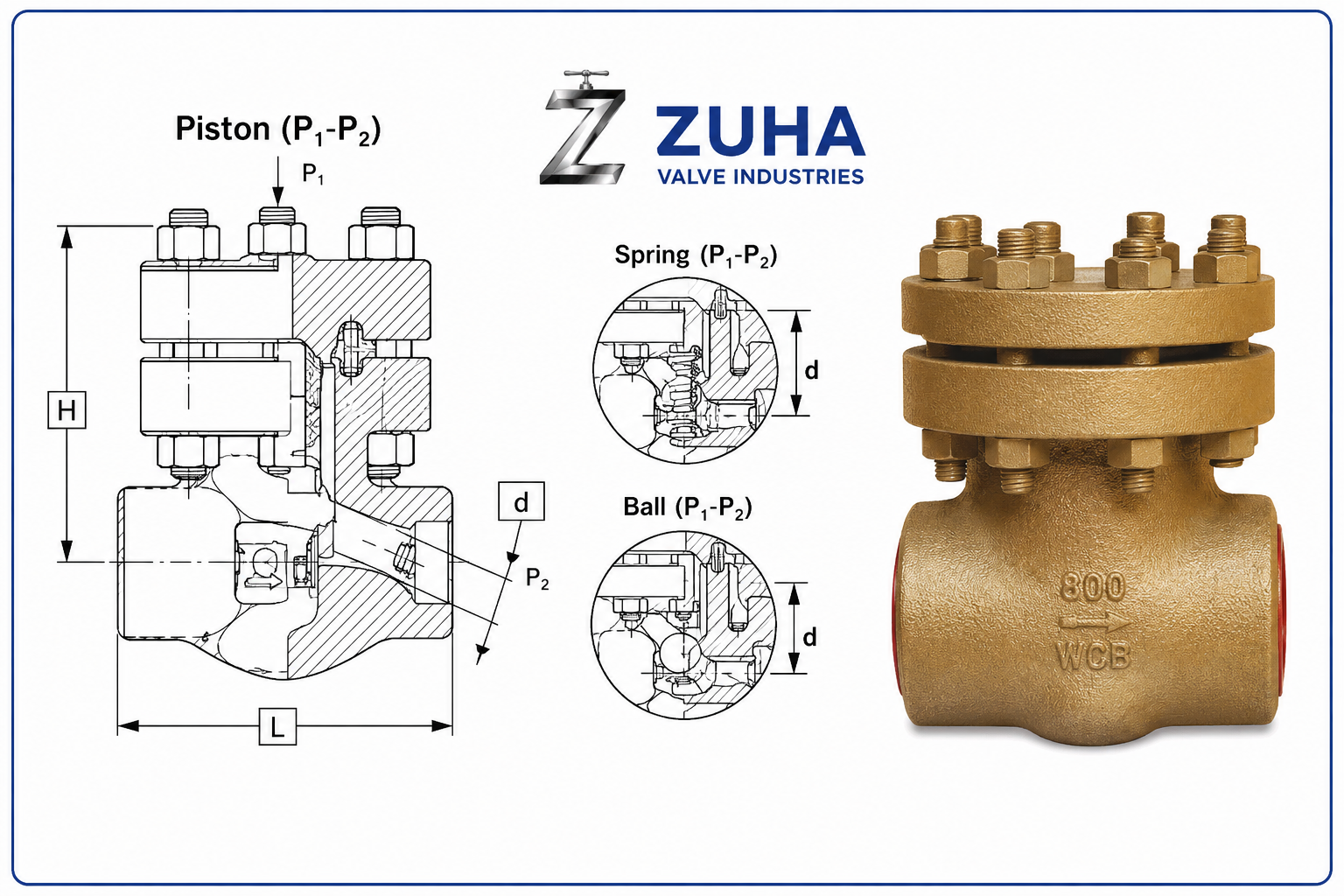

The Forged Steel Straight Body Bolted Cover Valve is engineered for critical
high-pressure and high-temperature applications. Its robust forged steel construction and
bolted cover design ensure exceptional strength, reliable sealing, and long service life.
Manufactured in accordance with international standards, this valve is ideal for demanding
applications in oil & gas, petrochemical, power generation, chemical processing, and
other industrial sectors.
| Specification | Details |
|---|---|
| Design | API / British Standard, Straight Body with Bolted Cover |
| Body Material | Forged Carbon Steel ASTM A105, ASTM A182 F11, F22, F9, F6, CF8 (304), CF8M (316/316L) |
| Disc & Seat Material | Forged Carbon Steel, SS304, SS304L, SS316, SS316L |
| Trim Material | F6, SS304, SS304L, SS316, SS316L |
| Operation | Manual Hand Wheel Operated |
| Pressure Rating | ASME Class 1500 |
| End Connections | Screwed Ends, Socket Weld, Butt Weld (ASME B16.11 & B16.25) |
| Manufacturing Standards | BS 5352, API 602 |
| Testing Standards | API 598, BS 6755 |
| Applications | Oil & Gas, Air, Petrochemical Industries, Power Plants, Water, Chemical Processing, Pharmaceutical, Acid Handling, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries |
