Product Description
The PTFE Lined Butterfly Valve is specially designed for corrosive media and demanding chemical processing applications. The fully lined PTFE body isolates the valve body from the process fluid, providing exceptional corrosion resistance and extended service life. A precision-molded PTFE seat with a Viton backup ring ensures bubble-tight shut-off and zero shaft leakage. Suitable for manual or automated operation, this valve is widely used in chemical, pharmaceutical, water treatment, food processing, and other industrial applications requiring reliable flow isolation.
| Specification | Details |
|---|---|
| Valve Type | PTFE Lined Centric Disc Butterfly Valve |
| Construction | Centric Disc Butterfly Valve with PTFE Lined Body |
| Body Type | Short Wafer, Two-Piece Body |
| Body Material | SG Iron (SGI), WCB, CF8, CF8M |
| Disc Material | CF8, CF8M and Other Special Alloys |
| Seat Material | PTFE, GFT with Viton Backup Ring |
| Shaft Material | SS410, SS316, 17-4 PH |
| Size Range | DN 50 to DN 350 |
| Pressure Rating | PN10 (Maximum) |
| Operating Temperature | -25°C to +200°C (Depending on Material of Construction) |
| Seat Leakage | Bubble Tight Shut-Off |

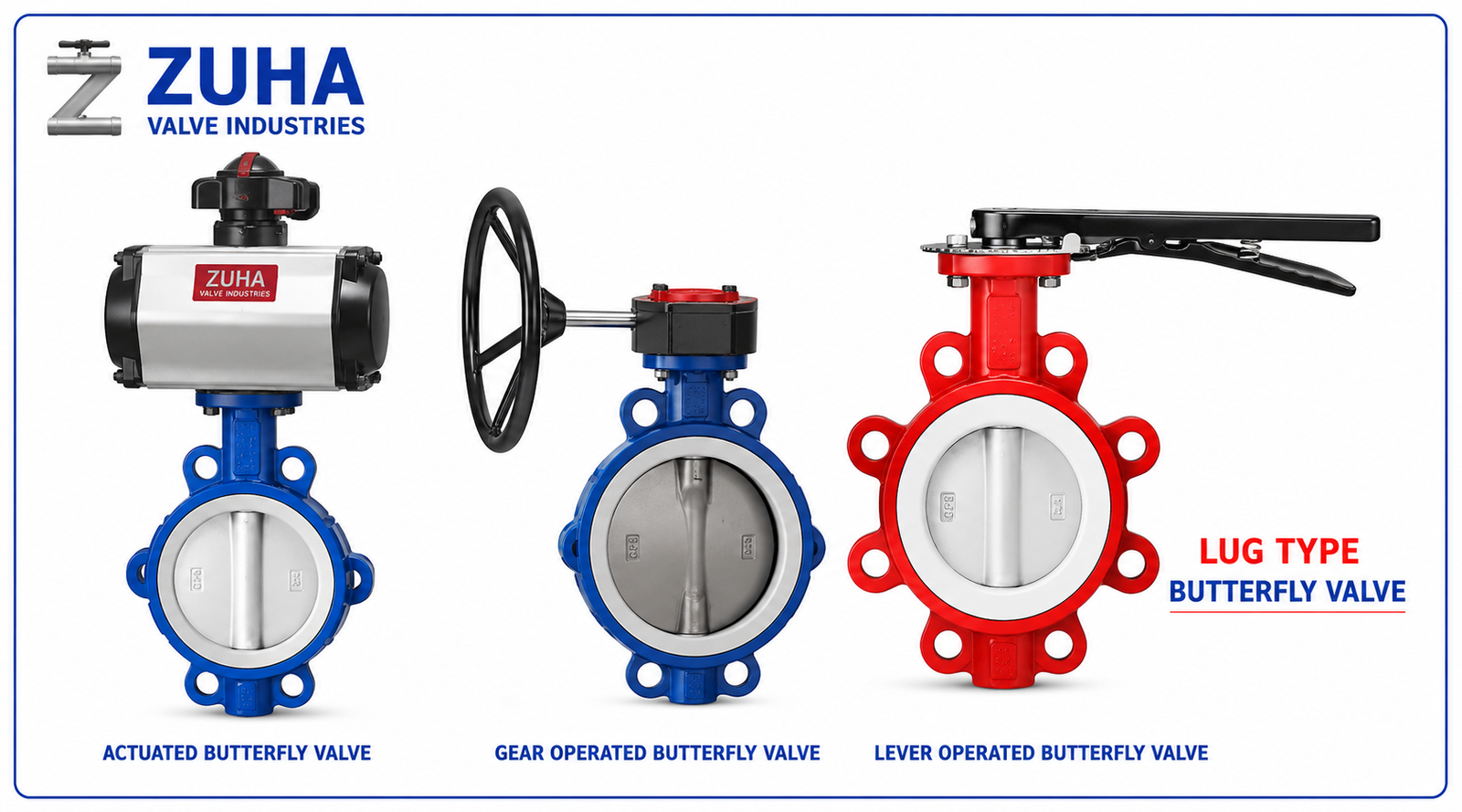

| Operation | Hand Lever, Worm Gear, Pneumatic Actuator, Electric Actuator (Optional) |
| Design Standards | EN 593, ISO 5752, API 609 Category A, ISO 5211 |
| Inspection & Testing | EN 12266 Part 1 |
| Flange Standards | DIN EN 1092 (PN6/PN10/PN16), Class 150, IS 6992 |
| Applications | Chemical Processing, Pharmaceutical, Water Treatment, Acids, Alkalis, Corrosive Fluids, Food Processing, Paper & Sugar Industries, Process Plants and General Industrial Applications |
