Product Description

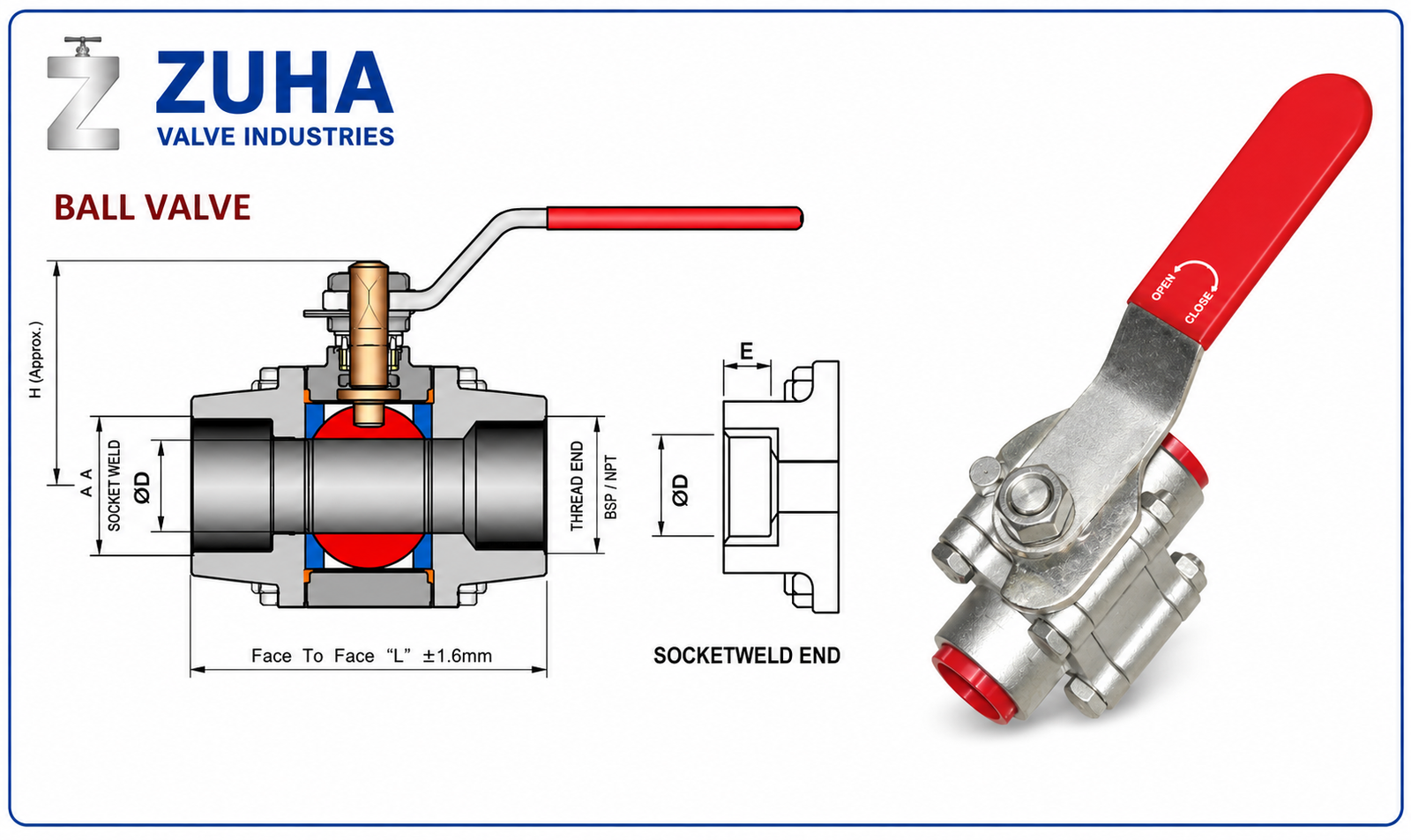

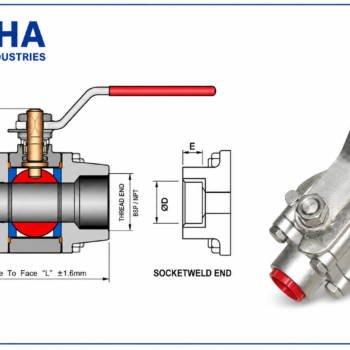

Our Three Piece Ball Valve is designed for reliable shut-off performance in
demanding industrial applications. Featuring a blow-out proof stem construction, high-quality
stainless steel ball and trims, and premium PTFE/GFT/CFT seats, it delivers excellent sealing,
corrosion resistance, and long service life. The valve is manufactured in accordance with
international standards, making it suitable for a wide range of industrial processes.
| Specification | Details |
|---|---|
| Design | Three Piece Ball Valve with Blow-Out Proof Stem Construction |
| Body Material | CS ASTM A216 Gr. WCB, ASTM A105, LF2, CF8, CF8M, etc. |
| Ball & Trim | SS304, SS304L, SS316, SS316L |
| Seat Material | PTFE, GFT, CFT |
| Operation | Manual Lever Operated |
| Pressure Rating | ASA 800 |
| End Connections | Screwed Ends, Socket Weld, Butt Weld |
| Port Type | Full Port & Reduced Port |
| Manufacturing Standards | BS 5351, ASME B16.34, API 6D, API 609, MSS SP-72 |
| Testing Standards | API 598, BS 6755 |
| Applications | Air, Gas, Water, Chemicals, Pharmaceutical, Oil & Gas, Acid, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries |
