Product Description

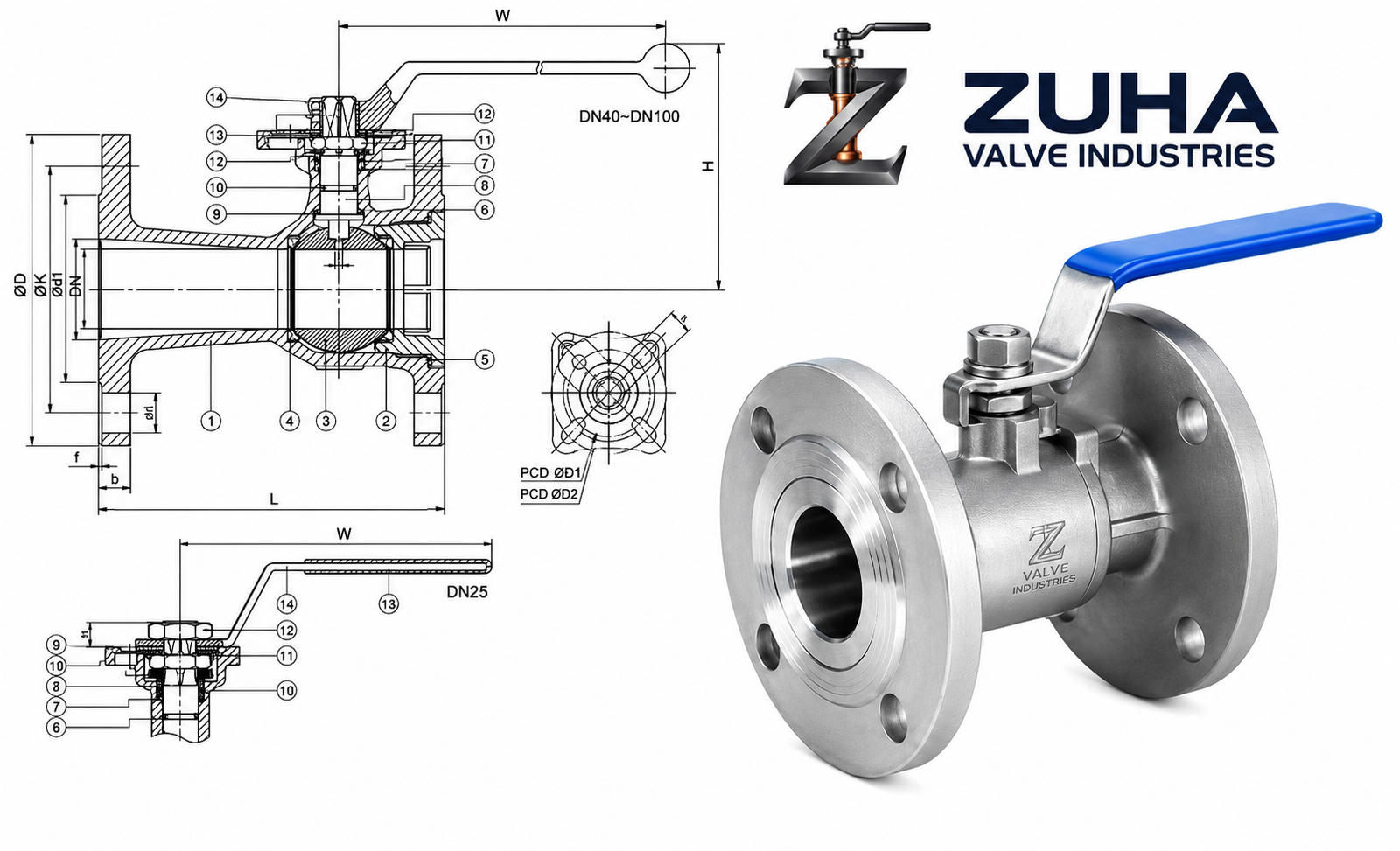

The UTVC Single Piece Flanged End Floating Ball Valve is designed with a
fire-safe reduced bore construction to provide reliable shut-off performance in industrial
applications. Manufactured from premium carbon steel and stainless steel materials, it offers
excellent strength, corrosion resistance, and long service life. Available with manual,
gear-operated, or pneumatic actuator options, the valve meets international manufacturing and
testing standards, making it suitable for demanding process industries.
| Specification | Details |
|---|---|
| Salient Feature | UTVC Single Piece Flanged End Floating Ball Valve with Mounting Pad |
| Design | Single Piece Ball Valve, Fire Safe Design, Reduced Bore |
| Body Material | CS ASTM A216 Gr. WCB, LCB, LCC, CF8, CF8M and other grades |
| Ball & Trim Material | SS304, SS304L, SS316, SS316L, Monel |
| Seat Material | PTFE, GFT, CFT |
| Operation | Manual Lever, Gear Operated, or Pneumatic Actuator |
| Pressure Rating | ASA 150 & ASA 300 |
| End Connection | Flanged Ends, Butt Weld |
| Port Type | Reduced Bore |
| Manufacturing Standards | BS 5351, ASME B16.34, API 6D, ISO 14313, API 609, MSS SP-72 |
| Testing Standards | API 598, BS 6755 |
| Applications | Air, Gas, Water, Chemicals, Pharmaceutical, Oil & Gas, Acid, Food Processing, Vacuum Systems, Heat Treatment, Paper & Sugar Industries |
